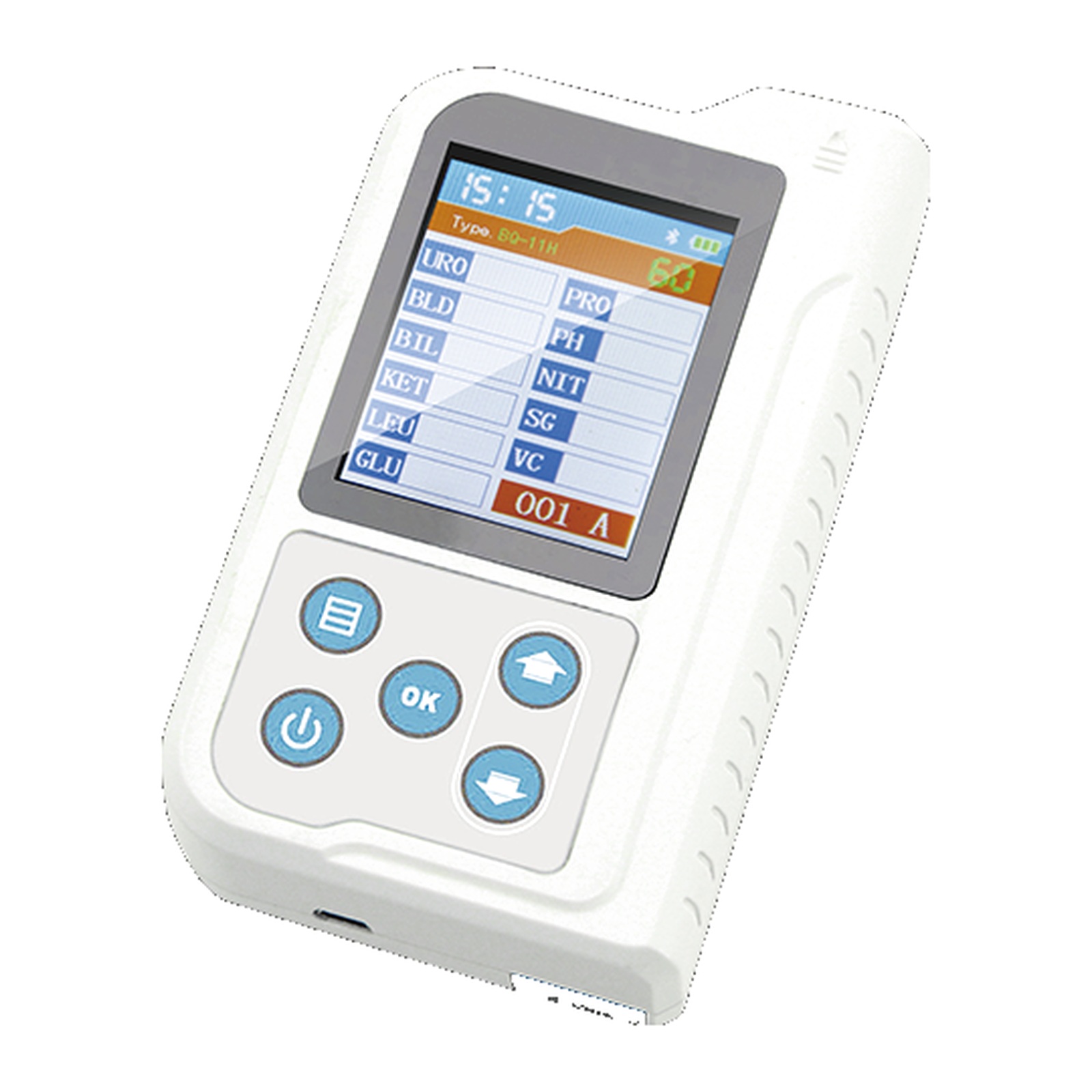

The 501 Urine Analyzer is a portable handheld urinalysis instrument that reads reagent strips photometrically and displays the full multi-parameter result on its own screen. Its battery-powered, hand-held format brings urinalysis to the bedside, the consulting room or any point-of-care location away from the main laboratory bench.
Technical specifications
- Model: 501 Urine Analyzer
- Type: portable handheld urinalysis reagent strip reader
- Test speed: 60 tests per hour
- Power: built-in rechargeable lithium battery
- Light source: high-luminance white LED, long life and high stability
- Display: integrated colour screen showing all test parameters
- Testing parameters: LEU, NIT, URO, PRO, pH, BLD, SG, KET, BIL, GLU, VC, MA, CRE and CA
Common platform features across the range
All models in the range share the same photometric reading principle for urinalysis reagent strips, the same parameter panel and the same reagent chemistry, so results are comparable whichever model in the series is used. The reagent strips are consumables for these analyzers and are ordered separately from the instrument.
Available testing parameters across the range: LEU, NIT, URO, PRO, pH, BLD, SG, KET, BIL, GLU, VC, MA, CRE and CA.
Featured combination panels: UTI, ACR and Vaginal pH.
Standards and certifications
FDA 510(k) cleared and CLIA waived reagent strips. Analyzers manufactured under an ISO 13485 certified quality management system for in-vitro diagnostic medical devices.
Intended use and applications
The instrument is intended for in-vitro diagnostic screening of urine using compatible urinalysis reagent strips at the point of care. Typical settings are hospital wards and bedside testing, emergency departments, outpatient and consulting rooms, dialysis and nephrology units, and mobile or outreach clinics where a bench-top reader is impractical.
Why choose this model
The built-in rechargeable lithium battery removes the need for a mains outlet, so the unit can be carried between rooms, wards or vehicles and used wherever the patient is. The on-board colour screen shows the complete parameter panel immediately, giving a result at the bedside without a separate printer or workstation. The high-luminance white LED light source delivers stable readings over a long service life, keeping the compact unit reliable in field and ward conditions.
Operation and maintenance
The device is operated entirely from its own keypad and display, with no external computer required. Recharge the built-in lithium battery according to the operating manual, keep the reading window clean, and use only compatible urinalysis reagent strips. The instrument is supplied with a 12-month warranty excluding consumables.
Warranty: 12 months, excluding consumables.
