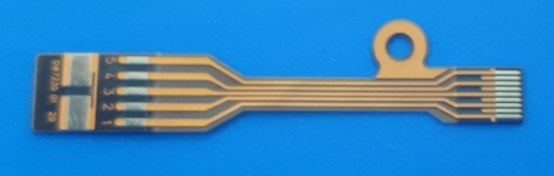

Flex Circuit Board for gastroscopes, colonoscopes and duodenoscopes, current-generation platform fit. Replacement repair part for flexible endoscope servicing.
Technical specifications
- Part type: flex circuit board
- Compatible platform family: gastroscopes, colonoscopes and duodenoscopes
- Platform fit: current-generation
- Colonoscope (lower GI) configuration
- For duodenoscope use
- Catalogue reference: ESP-FCB-005
- Supply form: single piece
Applications
Used to replace a damaged flex circuit board in the control section during endoscope repair.
Material and construction
Polyimide flexible printed circuit with copper conductors and a protective coating, built to the original track layout and connector pitch.
Compatibility
Designed for gastroscopes, colonoscopes and duodenoscopes. Confirm the connector layout and board outline against the control section before ordering.
Performance features
- Built to the original track layout and connector pitch
- Polyimide substrate tolerates repeated flexing at the control section
- Protective coating resists moisture and disinfectant exposure
