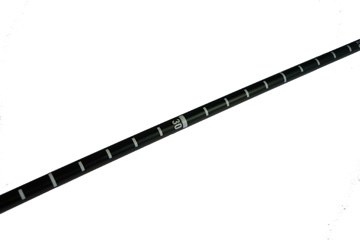

Flexible Insertion Tube for gastroscopes, 9.30 mm OD, 7.75 mm ID, 1090 mm length. Replacement repair part for flexible endoscope servicing.
Technical specifications
- Part type: flexible insertion tube
- Compatible platform family: gastroscopes
- Outer diameter: 9.30 mm
- Inner diameter: 7.75 mm
- Working length: 1090 mm
- Catalogue reference: ESP-IT-177
- Supply form: single piece
Applications
Used to replace a damaged, kinked or worn insertion tube during endoscope repair and refurbishment. Typical settings are hospital endoscopy units, independent endoscope service workshops and biomedical engineering departments.
Material and construction
Stainless-steel braid reinforcement over a low-friction inner liner, finished with a flexible polymer outer jacket. The construction reproduces the torsional and flexural behaviour of the original insertion tube.
Compatibility
Designed for gastroscopes. Confirm the outer diameter, inner diameter and working length against the instrument being serviced before ordering; the same insertion-tube geometry is shared across several platform generations.
Performance features
- Dimensional match to the original insertion-tube geometry (outer diameter, inner diameter and working length)
- Balanced flexibility for insertion with torsional control for scope rotation
- Smooth inner bore that protects instrument channels and accessories
- Kink-resistant braid construction
