Comprehensive hand rest, arm board, and side-lying scaffold set for supine, prone, lateral and arm-horizontal surgical positions. Stainless steel frames hold high-density memory foam or PU pads; all variants fit any brand of operating table via a universal fixator and accept custom pad dimensions on request.
Model variants and clinical advantages

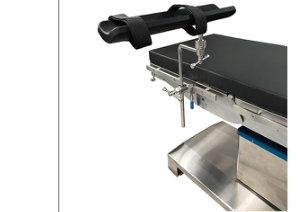

- FP-007-A1 / A2 / A3 / A4 / A5 / A6 (Standard arm board): Stainless steel frame, plate size 600 x 150 x 10 mm, PU pad; thickness options 30/40/50/60/80/90/100 mm. Most common configuration for supine arm extension.
- FP-007-B1 / B2 (Memory foam arm board): Same geometry with high-density memory foam pad (30/40/50/60/80/90/100 mm thickness) for extended procedures where pressure relief matters most.
- FP-007-C1 (Pole-length adjustable arm board): Pole length 250 mm / 160 mm variants for sharing with another operating-table device of the same fixing rod.

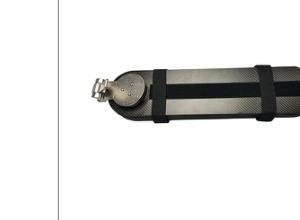

- FP-008-A1 / A2 / A3 / A4 / A5 / A6 (Carbon-fiber X-ray transparent arm board): Same dimensions as FP-007-A series but carbon fiber perspective hand board for full intraoperative imaging compatibility.

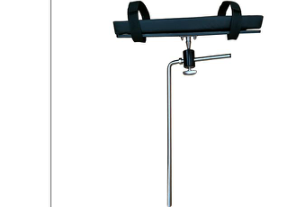

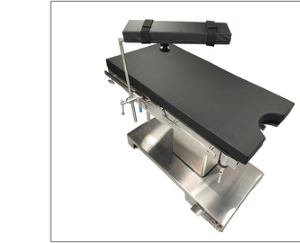

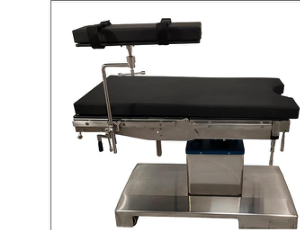

- FP-009-A1 (Side-lying / suspended / high-level scaffold): Universal 16 mm fixing rod, 600 x 150 x 10 mm PU pad; supports high-arm lateral-position surgery and can be equipped with two hand straps.
- FP-009-A2 (Multifunctional scaffold): 600 x 150 x 10 mm PU pad with extra length to support the high arm during lateral cases; the joint can move 15 cm and adjust the square two-hand straps for low-side positioning.
- FP-009-B1 (Side-lying / suspended scaffold): 16 mm fixing rod, 500 x 150 x 10 mm PU pad; comes with two hand straps for low-side surgery.

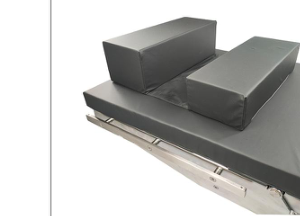

- FP-009-B2 (Lateral cushion): 400 x 150 x 150-400 x 150 x 100 mm high-density memory sponge for surgical equipment in lateral position.
- PP-010 (Lateral cushion): 400 x 150 x 150-400 x 150 x 100 mm memory sponge; ergonomic support for surgical lateral position.
- PP-011 (Abdominal / prone cushion): 840 x 460 x 100 mm high-density sponge with anti-static PU cover; applicable for prone and spine position requirements.
Search terms: arm board surgical, hand rest OT table, carbon fiber arm board, X-ray transparent arm board, side-lying scaffold, prone cushion, surgical position cushion.
