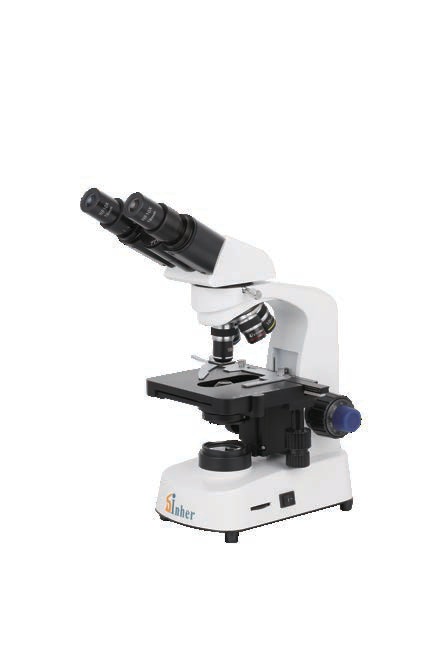

The XSZ-N117A is a binocular biological microscope from the XSZ-N117A series, combining a quadruple nosepiece with four achromatic objectives (4X, 10X, 40X spring and 100X spring oil) to cover low-power scanning through to high-magnification oil-immersion work. Two WF 10X/18 mm eyepieces give a wide, comfortable field of view for routine brightfield observation of stained smears, tissue sections and bacterial cultures.
Head and optics: binocular head inclined at 30 deg with 360 deg rotation and an interpupillary distance range of 48-75 mm, allowing the eyepieces to be set for individual users and the head to be swung clear for discussion or photography setup.
Key specifications
- Head type: binocular head, inclined 30 deg, rotatable 360 deg, interpupillary distance 48-75 mm
- Two WF 10X/18 mm eyepieces supplied
- Eyepiece: WF 10X/18 mm (WF 16X optional)
- Objectives: achromatic 4X, 10X, 40X (spring) and 100X (spring, oil) — plan 4X, 10X, 40X (spring) and 100X (spring, oil) optional
- Nosepiece: quadruple (four-position)
- Mechanical stage: double layer mechanical stage, size 140 x 140 mm, moving range 75 x 50 mm
- Condenser: Abbe condenser N.A. 1.25 with iris diaphragm (dark field ring for 4X-40X objectives optional)
- Focusing: coaxial coarse and fine adjustment, coarse focusing range 30 mm, fine focusing interval 2 um
- Illumination: LED light (6V/20W halogen lamp optional)
- Camera interface: C-mount, 1x and 0.5x
- Camera accessories: 5.0 megapixel digital camera (optional)
- 7.0 inch LCD screen (optional)
- 9.7 inch touch LCD screen (optional)
- Foam packing size: 390 mm x 260 mm x 490 mm
- Gross weight: 7 kg; net weight: 6 kg
- Quality: ISO 9001, ISO 13485, ISO 14001 and OHSAS 18001 certified; CE and GS compliant
Ergonomic design: interpupillary distance range is 48-75 mm and the eyepiece tube can be rotated 360 deg, so the viewing head can be positioned for comfortable extended use. The easy-to-change fuse and the redesigned collector make the instrument much lighter to carry.
Typical applications: hospital and clinical laboratories, pathology and histology departments, blood and urine sediment examination, microbiology and parasitology, university and school biology teaching, and quality control laboratories. The LED illumination keeps running costs low and provides stable colour temperature for visual work, while the quadruple nosepiece allows quick changes between magnifications without reseating the specimen.
Delivery: each unit is supplied in a foam-lined individual carton of 390 x 260 x 490 mm, gross weight 7 kg. Spare parts, additional eyepieces and camera adapters are available on request.
