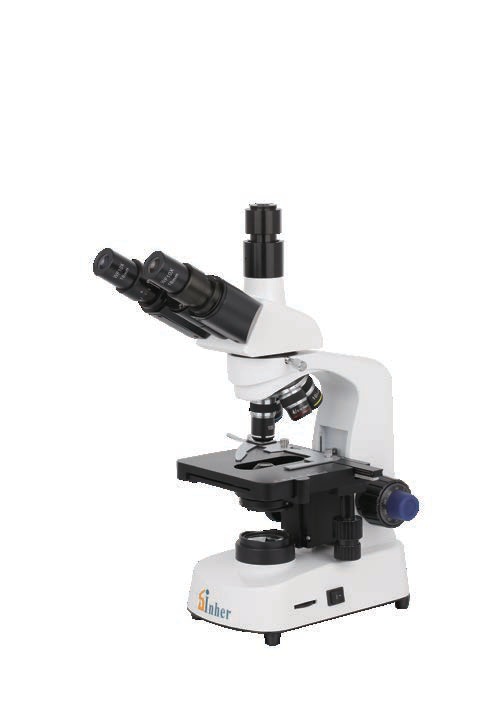

The XSZ-N117AIII is the trinocular model in the XSZ-N117A biological microscope series. It combines the same quadruple nosepiece and four achromatic objectives (4X, 10X, 40X spring and 100X spring oil) as the binocular version, and adds a third vertical photo port with a 1x C-mount adapter so a digital camera can be fitted for imaging, documentation and shared screen viewing.
Head and optics: trinocular head inclined at 30 deg with 360 deg rotation and an interpupillary distance range of 48-75 mm. The vertical photo port accepts the supplied 1x C-mount adapter, and 0.5x C-mount, 5.0 megapixel digital camera, 7.0 inch LCD screen and 9.7 inch touch LCD screen options are available.
Key specifications
- Head type: trinocular head, inclined 30 deg, rotatable 360 deg, interpupillary distance 48-75 mm
- Two WF 10X/18 mm eyepieces supplied
- 1x C-mount adapter included (1 pc), for attaching a digital camera
- Eyepiece: WF 10X/18 mm (WF 16X optional)
- Objectives: achromatic 4X, 10X, 40X (spring) and 100X (spring, oil) — plan 4X, 10X, 40X (spring) and 100X (spring, oil) optional
- Nosepiece: quadruple (four-position)
- Mechanical stage: double layer mechanical stage, size 140 x 140 mm, moving range 75 x 50 mm
- Condenser: Abbe condenser N.A. 1.25 with iris diaphragm (dark field ring for 4X-40X objectives optional)
- Focusing: coaxial coarse and fine adjustment, coarse focusing range 30 mm, fine focusing interval 2 um
- Illumination: LED light (6V/20W halogen lamp optional)
- Camera interface: C-mount, 1x and 0.5x
- Camera accessories: 5.0 megapixel digital camera (optional)
- 7.0 inch LCD screen (optional)
- 9.7 inch touch LCD screen (optional)
- Foam packing size: 390 mm x 260 mm x 490 mm
- Gross weight: 7 kg; net weight: 6 kg
- Quality: ISO 9001, ISO 13485, ISO 14001 and OHSAS 18001 certified; CE and GS compliant
Ergonomic design: interpupillary distance range is 48-75 mm and the eyepiece tube can be rotated 360 deg, so the viewing head can be positioned for comfortable extended use. The easy-to-change fuse and the redesigned collector make the instrument much lighter to carry.
Typical applications: hospital and clinical laboratories, pathology and histology departments, microbiology and cytology, university and research laboratories, and teaching facilities that need to capture or broadcast microscope images. The dedicated photo port lets the user photograph or record without removing an eyepiece, so visual observation and digital capture can be carried out at the same time.
Delivery: each unit is supplied in a foam-lined individual carton of 390 x 260 x 490 mm, gross weight 7 kg. Spare parts, additional eyepieces and camera adapters are available on request.
