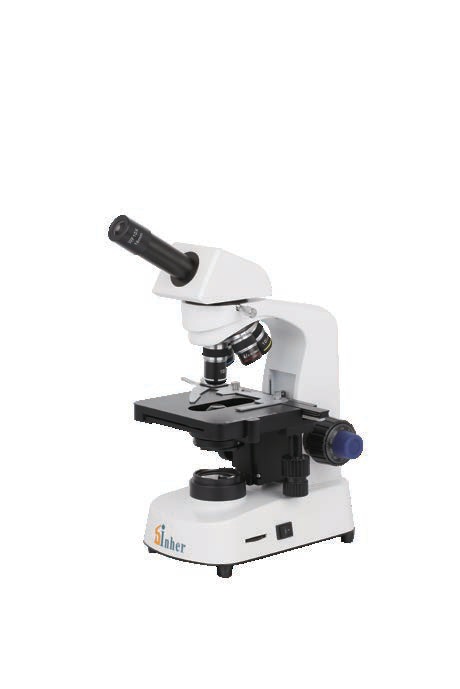

The XSZ-N117AM is the monocular model in the XSZ-N117A biological microscope series. With a single 30 deg inclined eyepiece it offers a direct, uncomplicated viewing arrangement for users who prefer one-eyepiece observation, while retaining the same quadruple nosepiece and four achromatic objectives (4X, 10X, 40X spring and 100X spring oil) as the binocular and trinocular versions.
Head and optics: monocular head inclined at 30 deg and rotatable 360 deg, supplied with one WF 10X/18 mm eyepiece. Because the monocular head is lighter than a binocular or trinocular head, it is a practical choice for high-throughput routine screening.
Key specifications
- Head type: monocular head, inclined 30 deg, rotatable 360 deg
- One WF 10X/18 mm eyepiece supplied
- Eyepiece: WF 10X/18 mm (WF 16X optional)
- Objectives: achromatic 4X, 10X, 40X (spring) and 100X (spring, oil) — plan 4X, 10X, 40X (spring) and 100X (spring, oil) optional
- Nosepiece: quadruple (four-position)
- Mechanical stage: double layer mechanical stage, size 140 x 140 mm, moving range 75 x 50 mm
- Condenser: Abbe condenser N.A. 1.25 with iris diaphragm (dark field ring for 4X-40X objectives optional)
- Focusing: coaxial coarse and fine adjustment, coarse focusing range 30 mm, fine focusing interval 2 um
- Illumination: LED light (6V/20W halogen lamp optional)
- Camera interface: C-mount, 1x and 0.5x
- Camera accessories: 5.0 megapixel digital camera (optional)
- 7.0 inch LCD screen (optional)
- 9.7 inch touch LCD screen (optional)
- Foam packing size: 390 mm x 260 mm x 490 mm
- Gross weight: 7 kg; net weight: 6 kg
- Quality: ISO 9001, ISO 13485, ISO 14001 and OHSAS 18001 certified; CE and GS compliant
Ergonomic design: interpupillary distance range is 48-75 mm and the eyepiece tube can be rotated 360 deg, so the viewing head can be positioned for comfortable extended use. The easy-to-change fuse and the redesigned collector make the instrument much lighter to carry.
Typical applications: hospital and clinical laboratories, blood and urine sediment examination, microbiology and parasitology, veterinary laboratories, industrial quality control, and school or college biology teaching. The 360 deg rotatable monocular head allows the eyepiece to be turned towards the operator from either side of the bench.
Delivery: each unit is supplied in a foam-lined individual carton of 390 x 260 x 490 mm, gross weight 7 kg. Spare parts, additional eyepieces and camera adapters are available on request.
